DELTA LOGIC





Innovative hard and software components

Since 1993, DELTA LOGIC has been developing and distributing innovative hard- and software components for the automation and control of machines and technical systems. Our know-how and our technical components are in demand and in use in all branches and sectors. Global market leaders trust in DELTA LOGIC and rely on our Swabian goods.

Every production or process step is regulated and exactly controlled via an electrical controller. Only by using intelligent software, the high demands on the product quality, security and flexibility of modern machines can be met. Regardless of whether it is about filling machines, cold rooms on cruisers, industrial furnace plants or complete fully automated assembly lines. Anyway, with DELTA LOGIC's soft- and hardware Swabian high technology is used worldwide.

Sort by
Display per page

ACCON-AGLink

918820-W-U
Efficient communication between PC and PLC. Conventional PLCs are often the standard solution for automation requirements. For control systems with an increased computing time or large data collectives, PCs and server are the first choice. The connection of both systems is ACCON-AGLink’s mission.

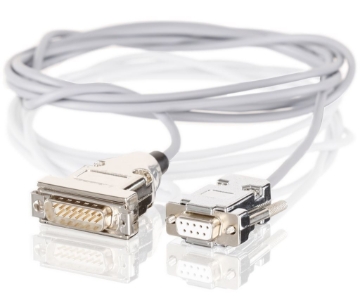

ACCON-COM-Cable

10203
Low-cost adapter to connect a PC with a S5 PLC.
The voltage supply is effected via the PLC interface, thus an external voltage feed is not necessary.

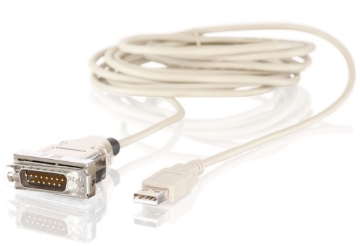

ACCON-COM-Cable USB

10203-USB
S5 adaptor with USB Connection. The ACCON-COM-Cable USB is an adaptor to connect a PC with a S5 PLC. It is fed via USB. Therefore, an external power supply is not necessary.

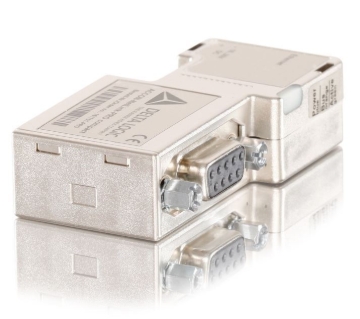

ACCON-NetLink-PRO compact

161701-PRO
Handy compact communication and programming adapter between PC and S7 PLCs.

ACCON-PG

910950-DOS-D
Proven S5 programming system for all controllers from AG 90U to AG 155U.
The programming languages STL, LAD and SCF are supported.

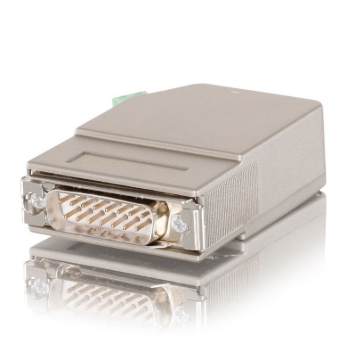

ACCON-S5-LAN

11800
The pro for connections to S5 PLCs ACCON-S5-LAN is a connection adaptor between a PC and a S5 PLC via TCP/IP. It is fed by the PLC's interface, an external power supply is not necessary.

ACCON-S7-Backup (Single license software autorization)

911100-W32
The comfortable backup pro ACCON-S7-Backup is a comfortable and easy to handle software for back upping and restoring S7 programs.The installation of ACCON-S7-Backup is effected within a few seconds. As no system components are installed, an installation on a mobile volume, e. g. a USB stick, is possible.

ACCON-S7-Backup (Single license USB-Dongle)

911100-W32-USB
The comfortable backup pro ACCON-S7-Backup is a comfortable and easy to handle software for back upping and restoring S7 programs.The installation of ACCON-S7-Backup is effected within a few seconds. As no system components are installed, an installation on a mobile volume, e. g. a USB stick, is possible.

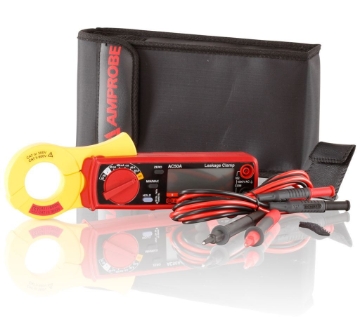

Digital Leakage Current Clamp

420001XX
Digital leakage current clamp 40Hz-1.000Hz, Min/Max, Data Hold. With carrying case, measuring cables, 2 batteries 1,5V , user manual (recommended accessory for BC-700 and BC-600).

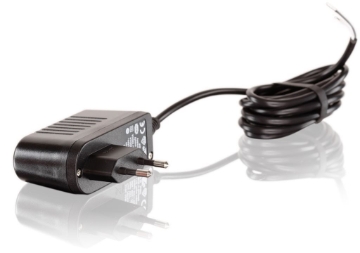

External 24 VDC power supply unit for S7 adapter

13012-24VDC
External power supply unit for VPN router, S7 adapters and S5 adapters.

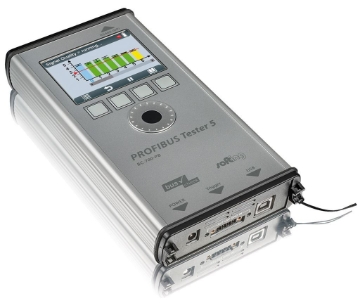

PROFIBUS-Tester BC-700

15BC-700-PB
Product information "PROFIBUS-Tester BC-700" The effective and universally applicable diagnostics tool The PROFIBUS-Tester BC-700 is a measuring device which allows a full and reactionless testing of PROFIBUS segments during operation. Thus, even sporadic interferences are detected. Furthermore, the integrated master simulator allows testing the bus without the need for an operational readiness of the PLC. Thus, even single »suspicious« bus devices can be tested.

Top-hat rail holder short

13012-HS
To install an adapter on a DIN rail. Suitable for ACCON-NetLink-PRO and ACCON-NetLink-USB.

Top-hat rail switch Spider 5TX

520003XXX
Robust Ethernet switch which suits industrial needs
The top-hat rail switches of the Spider family have been developed especially for the use in industrial environment. It is mounted on a DIN top-hat rail. The top-hat rail switches support Ethernet 10 MBit/s and fast Ethernet 100MBit/s. The devices enable the set-up of switched Ethernet networks according to the standard IEEE 802.3 or 802.3u with copper technique.

Top-hat rail switch Spider III 8TX

520002XXX
Robust, industrial grade ethernet switch
The DIN rail switches of the Spider family have been specially developed for use in industrial environments. Thus, the mounting takes place on a DIN rail. The DIN rail switches support Ethernet 10 MBit / s and Fast Ethernet 100 MBit / s. The devices enable the establishment of switched Ethernet networks according to the IEEE 802.3 or 802.3u standard with copper technology.

up to 8 ports configurable
Space-saving, easy and fast installation in tight environments
low power consumption

ACCON-MPI-Adapter RS-232

13012
A S7 adapter for the direct access The ACCON-MPI-Adapter allows the connection of a PC to a S7 PLC's MPI interface via the PC's serial interface. Perfect fields of application As programming adapter to create and change the PLC
