Compact Modules

Acquire Signals With High Precision on Site

Using the ibaPADU (Parallel Analog Digital Unit) device family, analog and digital signals can be acquired and recorded with high precision by the data acquisition system ibaPDA. Fast and synchronous sampling of all signals allows detailed analyzing of all processes.

Inputs for Current and Voltage Signals

ibaPADU is a device family for measurement of analog and digital signals.

The analog inputs are available as current and voltage inputs with different measuring ranges. Each channel is galvanically isolated and equipped with its own A/D converter. The devices support different ibaNet protocols and hence, offer different properties.

Compact Measurement Modules at a Glance

Sampling rate of 1 kHz with ibaPADU-8AI-U and ibaPADU-8AI-I
Sampling rate up to 40 kHz with ibaPADU-D-8AI-U and ibaPADU-D-8AI-I

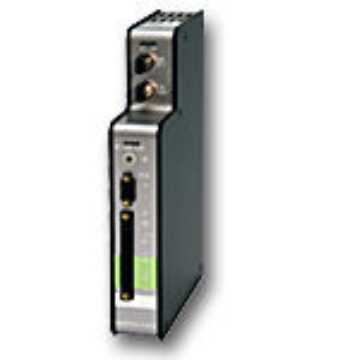

Sampling rate up to 100 kHz with ibaPADU-4-AI-U
Simultaneous data acquisition due to one A/D converter per channel, 16 bit resolution
Adjustable level and input characteristic
Full electrical isolation per channel
Integrated filters reduce interference
Comfortable configuration of the devices and signals in ibaPDA, except ibaPADU-C-8AI
Self-supplied data logger ibaPADU-C-8AI for power supply independent and mobile data acquisition and recording, with internal battery
