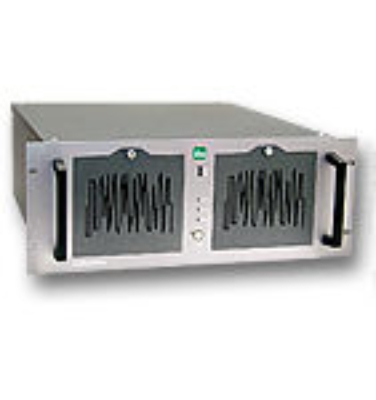

ibaRackline-PC CAM, XEON E, Win10

ibaRackline for mass data recording (HarmonizedCode:84714900, ECCN:4A994B1, LKZ:DE, AG:N)

Tillverkare: iba-ag

Artikelnr: 40.005021

mass data recording system - embedded system - Applications:

Technical Specification:

Manufacturer: iba AG
19" rack mount case
RAID5 system with SAS HDD technology
Redundand Power Supply 2x500W with changeable frame
Wide range input: 100V AC - 240V AC
CPU Intel XEON E 2146G, 3.5GHz
Industrial Motherboard C246 Chipsatz and LGA1151 Socket
On board Intel UHD-Graphic
Max. number of simultaneously useable monitors: 3
On board Gigabit Ethernet 2x 10 / 100 / 1000 Mbps
On board 7.1 Kanal HD Audio
6 x PCI Express Slots; used for:
- 1x PCI-Express x16 with SAS-RAID-Controller
- 1x PCI-Express x16 empty
- 4x PCI-Express x1 empty
1x PCI empty
32GB DDR4-RAM
1x HD frame 5x3,5", SAS HDD
5x 4TB SAS HDD
1x M.2 (2242/2260/2280) M-Key, supports Intel RST, PCI-ex4 mode SSD
1x M.2 (2230) A-Key, supports WiFi module
DVD drive external USB
8x USB 3.0 (housing backside)
1x USB 2.0 (housing inside / dongle)
2x USB 2.0 (housing front)
1x VGA, 1x HDMI, 1x DP
PS2-USB keyboard, PS2-USB optical mouse
Operating System: Windows 10 IoT Enterprise LTSC-2019
Dimension: (HxWxD) 180mm x 430mm x 500mm
- (Total rack depth with holder: 500mm + 40mm)
- (Total width: front panel 430mm + 55mm)

Special Remarks:

Part of the standard delivery is an external DVD-Drive for USB connection
Enhancement packages on extra costs:
- Upgrade with NVME-SSD as OS partition
- Upgrade storage size to 8TB per HDD
- Upgrade storage size to 12 TB per HDD
- Upgrade to server OS
Monitor must be ordered separately!
iba Plug&Play service (HW and Software purchased with PC installed and tested)

available
