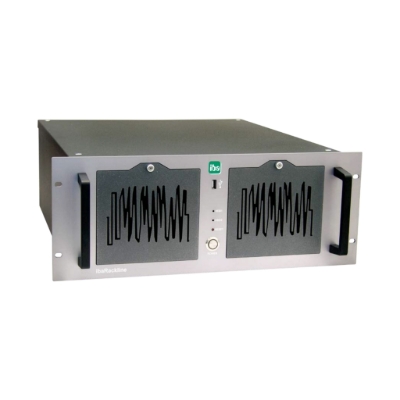

ibaNordic Rackline TFR

Technical Data:

• Manufacturer: iba AG
• 19" rack mount case ibaRackline
• Power Supply ATX 400W
• Input range: AC 100V ... 240V; DC 90V ... 120V
• CPU Intel XEON E 2176G, 3.6GHz
• Industrial Motherboard C246 Chipset and LGA1151 Socket
• On board Intel UHD Graphics
• Max. number of simultaneously usable monitors: 3
• On board Gigabit Ethernet 2x 10 / 100 / 1000 Mbps
• On board 7.1 channel HD audio
• 6 x PCI Express Slots:
  1 x PCI-e x16 with SAS RAID controller
  1 x PCI-e x16 slot for 1 x PCI-e x8
  1 x PCI-e x4
  3 x PCI-e x1
• 1x PCI empty
• 32GB DDR4 RAM
• 1x drive mounting frame 5.25", for up to 4x SAS 2.5" HDD/SSD
• 1x 1600GB SAS SSD
• 1x M.2 (2242/2260/2280) M-Key, supports Intel RST, PCI-e x4 mode SSD
• 1x M.2 (2230) A-Key, supports WiFi module
• 8x USB 3.0 (housing backside)
• 1x USB 2.0 (housing inside / dongle)
• 2x USB 2.0 (housing front)
• 1x VGA, 1x HDMI, 1x DP
• USB keyboard, USB optical mouse
• Operating System: Windows 10 IoT Enterprise x64 LTSC 2021/v21H2
• Dimension (H x W x D): 180mm x 430mm x 500mm
  Total rack depth with holder: 500mm + 40mm
  Total width: front panel 430mm + 55mm<

Upgrade to RAID1-System

Extension Kit for RAID1 SAS SSD functionality - Upgrade Kit

Technical Data:

• 1x SSD 1600GB SAS
• 1x Redundant Power Supply 2x500W for input voltage 90-264 VAC; 90-121 VDC; 198-242 VDC

ibaOut-State

Monitoring Board: Temperature and Power Supply
Relais Output - PC Status - Accessory:
The card is used to monitor temperature and power supply for an iba computer Technical Data:

• Manufacturer: iba AG
• Monitoring module
• Temperatur supervision:
  + Status indication: LED
  + Fault-Output: Relay contact
• Power supply supervision:
  + Status indication: LED
  + Fault-Output: Relay contact
