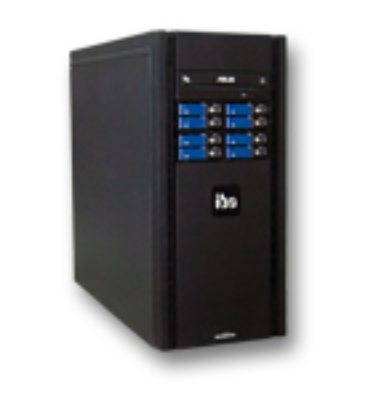

ibaDeskline SAS, XEON E, Win10, SSD

Data Acquisition System Deskline with SSD storage
(HarmonizedCode:84714900, ECCN:4A994B1, LKZ:DE, AG:N)

Tillverkare: iba-ag

Artikelnr: 40.002016

online system - embedded system - SSD - Applications:

Technical Data:

Manufacturer: iba AG
iba-Deskline Case:
Power Supply ATX 400W
wide range input: AC 90V - 264V
wide range input: DC 110V DC - 374V
CPU Intel XEON E 2146G, 3.5GHz
Industrial Motherboard C246 Chipset and LGA1151 Socket
On board Intel UHD-Graphic
Max. number of simultaneously useable monitors: 3
On board Gigabit Ethernet 2x 10 / 100 / 1000 Mbps
On board 7.1 Kanal HD Audio
6 x PCI Express Slots; used for:
- 1x PCI-Express x16 with SAS-RAID-Controller
- 1x PCI-Express x16 empty
- 4x PCI-Express x1 empty
1x PCI empty
32GB DDR4-RAM
1x Drive mounting frame 5,25", for up to 4x SAS 2,5" HDD/SSD
1x 1600GB SAS SSD
1x M.2 (2242/2260/2280) M-Key, supports Intel RST, PCI-ex4 mode SSD
1x M.2 (2230) A-Key, supports WiFi module
8x USB 3.0 (housing backside)
1x USB 2.0 (housing inside / dongle)
2x USB 3.0 (housing top)
2x USB 2.0 (housing top)
1x VGA, 1x HDMI, 1x DP
USB keyboard, USB optical mouse
Operating System: Windows 10 IoT Enterprise LTSC-2019
Dimension: (HxWxD) 460mm x 205mm x 490mm

Remarks:

This is a class A product. In a domestic environment this product may cause radio interferences in which case the user may be required to take adequate measures.
Enhancement packages on extra costs:
- Upgrade to RAID1-System
- Upgrade with NVME-SSD as OS partition
Monitor must be ordered separately!
iba Plug&Play service (HW and Software purchased with PC installed and tested)
If a PCI card shall be used within the existing PCI slot, please contact our support for more information
