ibaCapture-Server-960fps

Video Recording (HarmonizedCode:85234910, ECCN:N, LKZ:DE, AG:N)
Tillverkare: iba-ag
Artikelnr: 38.000004

Basic License for Video Capturing; Record up to 960 fps - Server license for video recording

  • The number of cameras is limited by the total allowed framerate of the server license (max. 64 cameras total)
  • License extension to 1440fps is available at extra cost

Technical Data:

  • Capture Server base license for video recording from cameras and virtual iba cameras
  • Video- and data capture:
    - Synchronized process data acquisition between ibaCapture and ibaPDA servers
    - Analysis and video display in ibaAnalyzer
  • Includes one Interface "ibaCapture-Interface-PDA" for synchronization with one ibaPDA Server. For every other ibaPDA server another "ibaCapture-Interface-PDA" license is required
  • Requires additional interface licenses for the desired cameras:
    - ibaCapture-1CAM-REC or
    - ibaCapture-1CAM-DISP or
    - ibaCapture-1CAM-VIRT or
    - ibaCapture-1CAM-GigE
  • Includes 96 client Live-Streams for video live views. If necessary, the amount of allowed streams can be extended with "ibaCapture-Live-Stream Add-On" licenses. Replaying stored video is not limited.
  • Supported camera types:
    - Analog cameras (PAL/NTSC) either via framegrabber-board (PCIe) or analog-IP-converter (e.g. AXIS P7214)
    - IP-cameras (ONVIF, AXIS), if mpeg4, h264 or h265 video codecs are supported by the camera
    - GigE-Vision cameras (GenICam) with supported Network Interface Controller
    For usage the license for a supported GigE-Vision SDK is required (e.g. Pleora eBUS Runtime)
    - HMI-camera (virtual) with ibaCapture-HMI (at least v4.0.0)
    - MachineVision-output (virtual camera) with ibaVision

Remarks:

  • Usable under these operating systems:
    Windows 7, Windows 10, Windows Server 2008 (R2), Windows Server 2012 (R2), Windows Server 2016
  • When using PCIe framegrabber boards in PCs from 3rd party suppliers there might be some restrictions
  • Enabled with USB dongle or soft license
  • Contains software maintenance and support after the purchase for 2 years. Afterwards a software maintenance and support contract is required.
Produkttaggar
Kunder som köpte denna köpte också

ibaCapture-1CAM-REC

38.000030
Video Recording (HarmonizedCode:85234910, ECCN:N, LKZ:DE, AG:N)

ibaCapture-Interface-PDA

38.000040
ibaCapture-Server interface for an ibaPDA connection (HarmonizedCode:85234910, ECCN:N, LKZ:DE, AG:N)

ibaCapture-Server-960fps-EUP

38.000024
Software maintenance and support (HarmonizedCode:85234910, ECCN:N, LKZ:DE, AG:N)

ibaCapture-1CAM-VIRT

38.000032
Video Recording (HarmonizedCode:85234910, ECCN:N, LKZ:DE, AG:N)

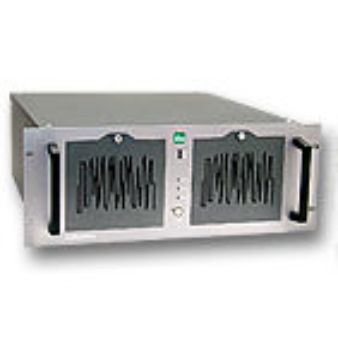

ibaRackline-PC CAM, XEON E, Win10
