ibaPDA-2048

Process Data Acquisition: Basic package
license with 2048 measuring signals - Software system for acquisition and recording of up to 2048 signals
Tillverkare: iba-ag
Artikelnr: 30.772048
59 904,40 kr
exklusive frakt

license with 2048 measuring signals - Software system for acquisition and recording of up to 2048 signals

Technical Data:

  • Client-server-architecture
  • Configuration of acquired signals for data gathering via IO-configurator
  • Auto detect of connected iba-hardware (Plug-and-Play)
  • Acquisition of max. 2048 signals (analog, digital and text)
  • OPC DA client and server already included
  • Free combination of signals for user defined groups
  • Formular editor for virtual signals
  • Filtering functions and data compression possibilities
  • Individually configurable online display layouts
  • Continuously or triggered recording parallely in two files (optionally extendable)
  • Various storage profiles
  • Output of messages and events
    ....

Remarks:

  • Supported operating systems: Windows 10 (x86/x64), Windows 11 (x64), Windows Server 2016 (x64), Windows Server 2019 (x64), Windows Server 2022 (x64)
  • .NET Framework 4.8 required
  • Enabled by license
  • Contains software maintenance and support after the purchase for 2 years. Afterwards a software maintenance and support contract is required.

Produkttaggar

Kunder som köpte denna köpte också

ibaPADU-S-B4S

10.124000
Data acquisition device: Modular System

(HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)
4 667,88 kr exklusive frakt

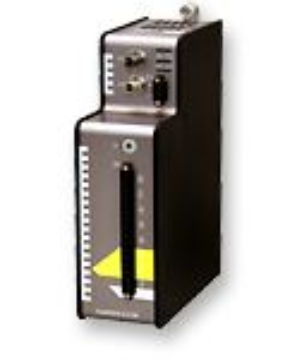

ibaPADU-S-CM
