ibaPDA-Multistation

PDA License Extension (HarmonizedCode:85234910, ECCN:N, LKZ:DE, AG:N)
Tillverkare: iba-ag
Artikelnr: 30.001930
License for Multistation Applications - Multistation Operation

Technical Specification:

  • Synchronization of several ibaPDA-V6 systems with a sample accuracy between the linked data acquisition systems.
  • Trigger pool with the distribution of trigger events via Ethernet (TCP/IP) connectivity.
  • Special Remarks:
  • For the multistation master an output module ibaFOB-4o-D is required which needs to be connected as a mirror card to an available FOB-i- card (Type D).
  • All 4 outputs of the ibaFOB-4o-D are sending in parallel the "snctime" signal for the multistation synchronization.
  • For a multistation slave a FO link input of a FOB-i-card (type D) is required for receiving the "synctime" signal for multistation synchronization.
  • If more than 4 multistation slaves should be synchronized, an additional FO distributer ibaBM-FOX-i-3o-D can be used to distribute the "synctime" signal accordingly.
  • Status:available
    Produkttaggar
    Kunder som köpte denna köpte också

    ibaPADU-S-B4S

    10.124000
    Data acquisition device: Modular System (HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)

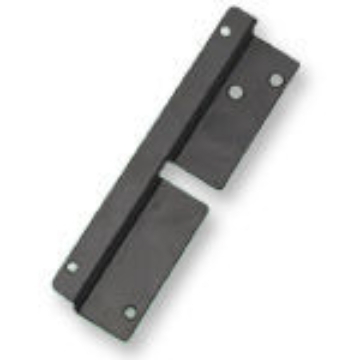

    Mounting Angle for PADU-S modular

    10.124006
    Mounting Angle for PADU-S-Modular System (HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)

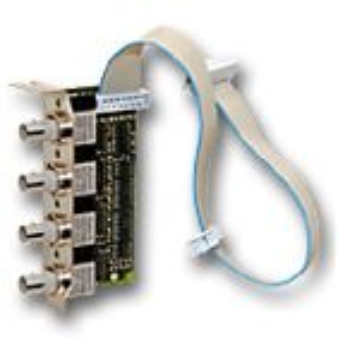

    ibaFOB-4o-D rackline-slot

    11.116200
    Process coupling: fiber optic board (HarmonizedCode:84733020, ECCN:N, LKZ:DE, AG:N)

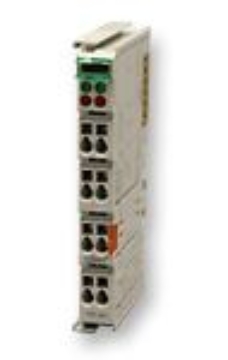

    ibaNet750-512/2-DO Relais (Closing Contact)
