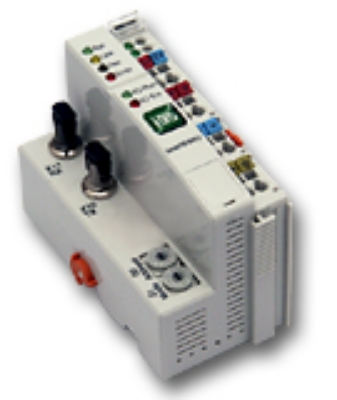

ibaNet750-BM-D

Decentralized input and output system - Headmodule for operating with 32Mbit-Flex-Protocol for fast FO communication and for operating in a compatible mode for replacement purposes for previously used devices with 3Mbit protocol

Technical Specification:

• Manufacturer: iba AG
• Bus connection for WAGO I/O-System 750
• Power supply: 24 V DC (±10 %)
• Load power supply: 24 V DC external
• Supports analog and digital input and output modules and complex terminals
• Automatic module detection (32Mbit Flex)
• Flexible setting of the sampling rate (32Mbit Flex)
• Ring topology for input and output processes with up to 15 devices (32Mbit Flex)
• Replacement for previous ibaNet750-BM devices
  -----
  ibaNet protocol
• 32Mbit Flex: Can be adjusted flexibly (up to 40 kHz / 25 µs); 1024 analog signals (INT) + 1024 digital signals at 1 ms
• 32Mbit: 500 µs; 512 analog signals (INT) + 512 digital signals
• 3Mbit: 1 ms; 32 analog signals (INT) + 32 digital signals
• Assembly on the mounting rail

Special Remarks:

• A various number of WAGO modules are available at iba
• Device runs with FO communication via FOB-cards only

Status:available
