ibaBM-DIS-i-8o

Bus module: Distributer (HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)
Tillverkare: iba-ag
Artikelnr: 13.114100

FO intelligent splitter, 1 input, 8 outputs - Distributes one ibaNet-drop to eight ibaNet-drops

Technical data:

  • Manufacturer: iba AG
  • Inputs:
    - 1 x FO 32Mbit/s
  • Outputs:
    - 8 x FO 32Mbit/s / 3,3Mbit/s
    - 1 x FO 32Mbit/s (mirrored output)
  • Mode selection via switch
  • Mirroring mode:
    - 1 x 32 Mbit/s input is mirrored to 8 + 1x 32Mbit/s outputs
  • Distribution mode:
    - 1 x 32 Mbit/s input with 512 analog and 512 binary signals is distributed to 8 x 3,3Mbit/s outputs, each with 64 analog and 64 binary signals
    - In addition the 32MBit/s input is mirrored to an additional output with 32 Mbit/s
  • DIN rail mountable
  • Dimensions: 58 mm x 188 mm x 155 mm
    (incl. DIN rail clip)

RemarksStatus:available



Kunder som köpte denna köpte också

ibaDatCoordinator

34.010550
ibaDat-Coordinator (HarmonizedCode:85234910, ECCN:N, LKZ:DE, AG:N)

ibaDatCoordinator S7 Writer

34.010556
ibaDatCoordinator (HarmonizedCode:85234910, ECCN:N, LKZ:DE, AG:N)

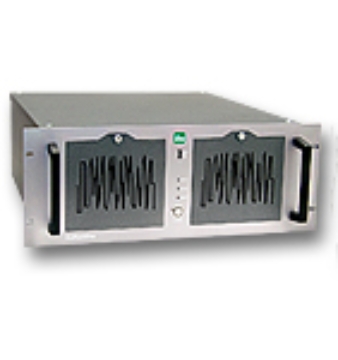

ibaRackline SAS, XEON E, Win10
