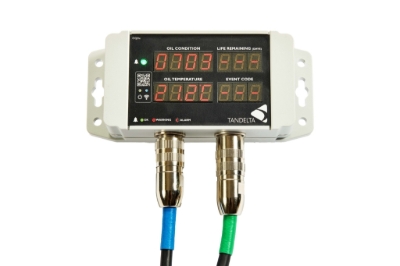

OQDe-G2 Display

Display, Log, & Analyse data from OQSxG2 Sensors.
Manufacturer: Tan Delta Systems
SKU: OQDe-G2

Highlights

  • ESSENTIAL INFORMATION - Displays oil quality, temperature and rate of change in real time.
  • EVENT ALERTS: Configurable traffic light alert system provides simple visual alerts to events such as contamination
  • DATA LOGGING: All data is continuously logged and can be easily downloaded
  • CONNECTIVITY: Built-in WiFi enables easy connection to mobile devices or other networks to share and stream data - integrate real-time oil condition straight into your IoT platform (JSON API)
  • ROBUST AND RELIABLE: Water, shock and vibration-proof. Engineered for use in all industrial and commercial environments
  • REDUCE MAINTENANCE COSTS: Enables you to predict and pinpoint when equipment requires maintenance and oil is truly at the end of its life. This typically enables you to safely extend intervals between maintenance and reduce associated costs by approximately 30% per year
  • REDUCED DOWNTIME: Unseen equipment issues cause subtle changes to oil condition, which are detected and alerted, enabling pre-emptive maintenance before failure or major damage and/or accelerated wear
  • ENVIRONMENTAL (ESG) TARGETS: Safely maximise oil use to reduce consumption by approximately 30% per annum. Reduce parts consumption and extend equipment life

Included

1 x Display Express

Note

Cables are not supplied with this product. These are supplied separately – see Cable Section of our web site.
For configuration you will require 1 x Cable-J and 1 x Cable-M.
For Installation you will require 1x Cable-K, 1 x Cable-M and 1 x Cable-L.

Products specifications
Attribute nameAttribute value
Product Information
MaterialHeat resistant polycarbonate
Dimensions151mm x 66mm x 42mm (L x W x H)
Weight300g
Electrical
Supply+9-30 V DC
Consumption0.4w Average, Continuous 200mA
Data Output / Input
Analog Output 1 x 4-20mA
Digital Output 1xRS485: 9600 baud half duplex to sensor 1xRS485: 512000 baud half duplex from display
Environmental
Operating Temperature-30°C to +65 °C
Standards & Certification
Water & Dust IP67 when connected BS EN 60529:1992+A2:2013
Shock & Vibration BS EN 60068-2-30 (Test Db - Cyc.Hum.) BS EN 60068-2-6 (Test Fc - Sine Vib.) BS EN 60068-2-27 (Test Ea - Mech.Shock)
EMCEN 61000-6-4:2007 (Generic Emissions Standard for Industrial Environments) EN 61000-6-2:2005 (Generic Immunity Standard for Industrial Environments) EN 61000-6-2:2007 (Generic Immunity Standard for Industrial Environments) EN 300 328 v1.8.1. (Transferable Electromagnetic Compatibility for Wideband Data Transmission Equipment operating in the 2.4GHz ISM Band and using Wideband Modulation Techniques.)
ConformityCE & UKCA Marked RoHS Compliant
Data Logging
Logging Interval5 minutes
Battery Backup ~10 years
Data DownloadVia WiFi using any internet-enabled device
Real Time ClockYes
Display
Oil QualityTan Delta Number (TDN)
Oil Temperature-20ºC (-4ºF) to +120ºC (+248ºF)
Oil life remainingDays
Status Indicator LED
