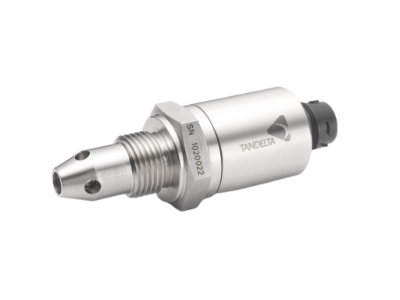

OQSx-G2 Oil Quality Sensor (1/2” NPT)

Real-time oil condition analysis sensor with integrated intelligent equipment maintenance optimisation analytics for all applications.

SKU: OQSx-G2-NP1

Product Files

Downloads

Products specifications

Attribute name	Attribute value
Product Information
Name	Gen 2 - Oil Quality Sensor
Product Number	OQSx-G2-NP1
Material	Stainless Steel AISI304
Dimensions	102mm x 36mm (L x W)
Weight	180g
Connection	32mm AF Hex Collar
Torque	25N m
Available Threads
Thread - Seal	1/2” NPT n/a
Connections
Connector	6-Pin Bulgin PXP4013/06P/PC
Electrical
Supply	+9-30 V DC
Consumption	0.4w Average
Data Output / Input
Digital Output	RS485, CANBus
Protocols Supported	Modbus, CANOpen and J1939
Oil Quality Detection Parameters
Frequency	Every 2 seconds
Output	Tan Delta Number (TDN) Oil Temperature (°C or °F)
Accuracy	0.01%
Elements	All wear and contamination
Environmental
Calibrated Temperature	-20°C to +120°C
Operating Temperature	-40°C to +120°C
Fluid Temperature	-40°C to +120 °C
Fluid Pressure	up to 70 bar (1015 psi)
Storage Temperature	-55°C to +150°C
Standards & Certification
Water & Dust	IP67 when connected
Shock & Vibration	BS EN 60068-2-27 (Test Ea - Mech. Shock)
EMC	EN 61000-6-2:2005 (Generic Immunity Standard for Industrial Environments)
Conformity	CE Marked RoHS Compliant
