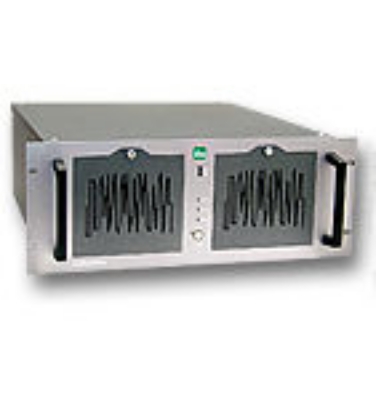

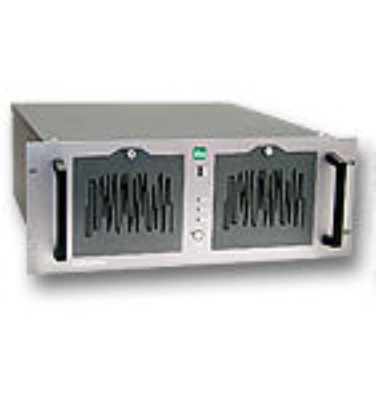

ibaRackline-PC HD, XEON E, Win10

mass data recording system - embedded system - Applications:

• Longterm data recording (HD data)

Technical Specification:

• Manufacturer: iba AG
• 19" rack mount case
• RAID5 system with SAS HDD technology
• Redundand Power Supply 2x500W with changeable frame
• Wide range input: 100V AC - 240V AC
• CPU Intel XEON E 2146G, 3.5GHz
• Industrial Motherboard C246 Chipsatz and LGA1151 Socket
• On board Intel UHD-Graphic
• Max. number of simultaneously useable monitors: 3
• On board Gigabit Ethernet 2x 10 / 100 / 1000 Mbps
• On board 7.1 Kanal HD Audio
• 6 x PCI Express Slots; used for:
  - 1x PCI-Express x16 with SAS-RAID-Controller
  - 1x PCI-Express x16 empty
  - 4x PCI-Express x1 empty
• 1x PCI empty
• 32GB DDR4-RAM
• 1x HD frame 5x3,5", SAS HDD
• 5x 4TB SAS HDD
• 1x M.2 (2242/2260/2280) M-Key,
  used for 1x 256GB NVMe SSD intermediate storage
• 1x M.2 (2230) A-Key, supports WiFi module
• DVD drive external USB
• 8x USB 3.0 (housing backside)
• 1x USB 2.0 (housing inside / dongle)
• 2x USB 2.0 (housing front)
• 1x VGA, 1x HDMI, 1x DP
• PS2-USB keyboard, PS2-USB optical mouse
• Operating System: Windows 10 IoT Enterprise LTSC-2019
• Dimension: (HxWxD) 180mm x 430mm x 500mm
  - (Total rack depth with holder: 500mm + 40mm)
  - (Total width: front panel 430mm + 55mm)

Special Remarks:

• Part of the standard delivery is an external DVD-Drive for USB connection
• Enhancement packages on extra costs:
  - Upgrade storage size to 8TB per HDD
  - Upgrade storage size to 12TB per HDD
  - Upgrade to server OS
• Monitor must be ordered separately!
• iba Plug&Play service (HW and Software purchased with PC installed and tested)

available
